Dear collaborators and customers, please find below the preowned hydraulic presses located at our headquarters available for inspection and purchase during the event RetroFall 2022 – 6th of October 10am – 2pm GMT+2 – IT.

10 am – 12 pm : Press inspection; TECNOPRECISA’ technical team available to discuss retrofit and refurbish options;

12 pm – 14 pm : Offers and buying options; TECNOPRECISA’ sales team available to discuss contracts, payment options and delivery times.

This is a rare opportunity to cut costs and time to setup and/or improve your production lines, please complete the form at the bottom of the page to express your interest and receive the invitation to the event.

How to get to TECNOPRECISA:

By flight:: Milano Malpensa Airport

By car: Autostrada A4 exit Marcallo Mesero

Closest accomodation: Hotel Diamante

For any enquiry please contact:

Andrea Ficara

Sales Manager

Mobile: +39 3713825074

Email: andrea.ficara@tecnoprecisaservice.it

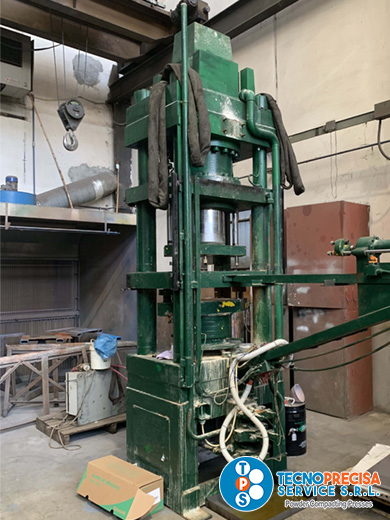

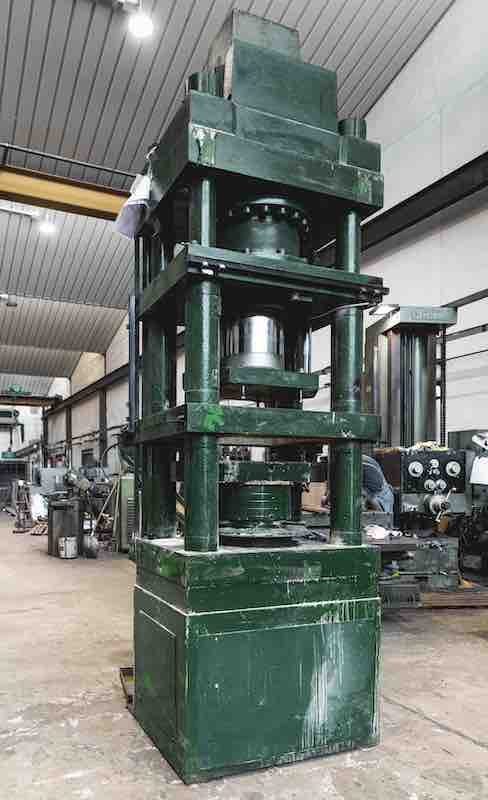

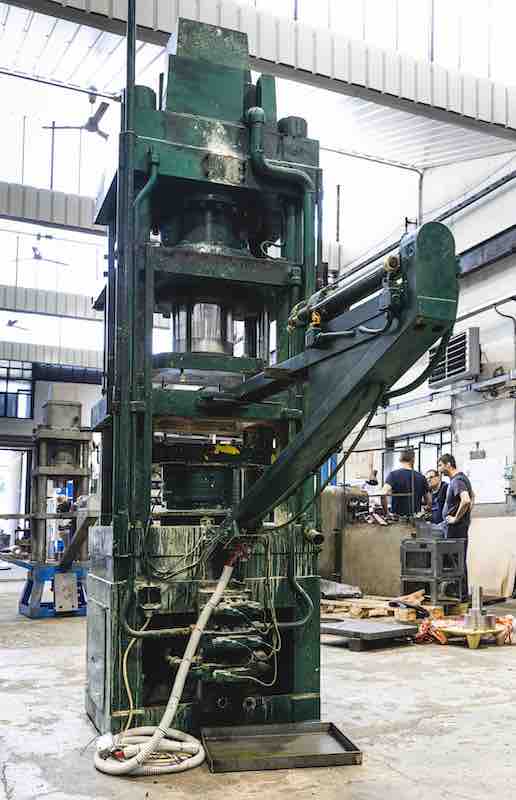

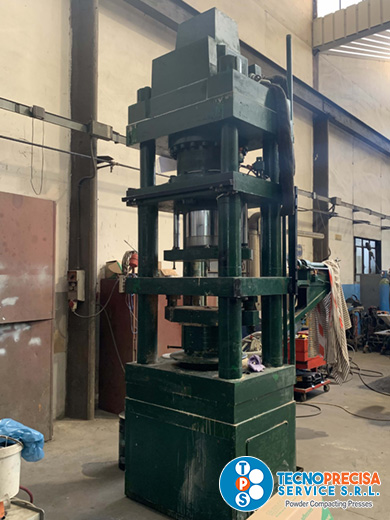

TITANO 300T single punch hydraulic pressTop and bottom double-effect cylinders - Suitable for tableting inert powderMinimum Price including standard retrofitting - tooling excluded - €215.000,00

TECHNICAL INFO

Height

3755mm

Length

1530mm

Width

1060mm

Die

300 - 400mm

Dosage Chamber

100mm

Maximum Pressure

300T - 300 bar

Approx Cycles per Minute

6/7

Approx Tablets per Punch - standard 25,6mm x 35,6mm 7,5T tablet pressure

40

Energy Consumption

15 / 20 Kw

Water consumption

20 / 25 L per minute

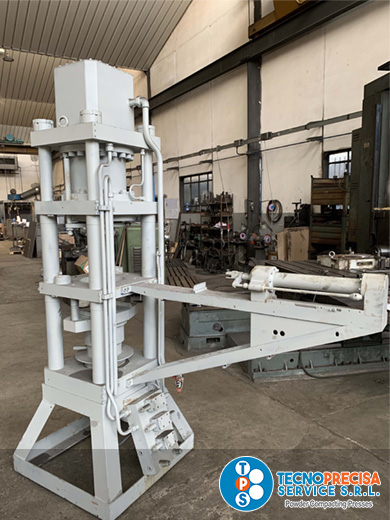

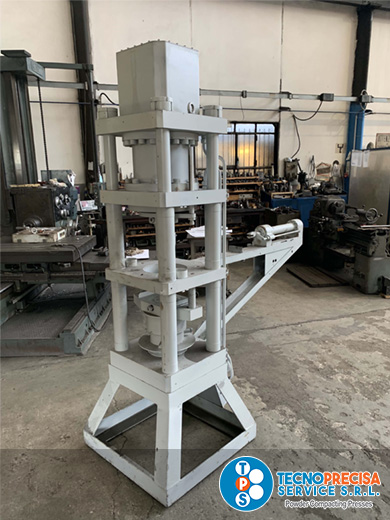

TITANO 80T single punch hydraulic pressDouble tail option available - Suitable for tableting inert powderMinimum Price including standard retrofitting - tooling excluded - €98.000,00

TECHNICAL INFO

Height

2350mm

Length

2000mm

Width

810mm

Die

265 - 285mm

Dosage Chamber

100mm

Maximum Pressure

80T - 151 bar

Approx Cycles per Minute

6/7

Approx tablets per punch - standard 25,6mm x 35,6mm 7,5T tablet pressure

10

Energy Consumption

7,5 / 10 Kw

Water Consumption

5 / 10 L per minute

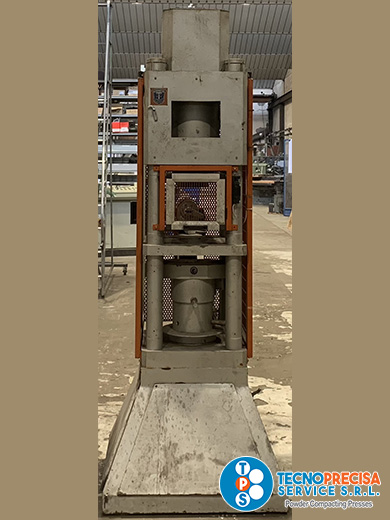

TITANO 50T single punch hydraulic pressDouble-effect top and bottom cylinders - Suitable for tableting inert powderMinimum Price including standard retrofitting - tooling excluded - €89.000,00

TECHNICAL INFO

Height

2250mm

Length

1250mm

Width

800mm

Die

205 - 215mm

Dosage Chamber

100mm

Maximum Pressure

50T - 150 bar

Approx Cycles per Minute

8/10

Approx Tablets per Punch - standard 25,6mm x 35,6mm 7,5T tablet pressure

6

Energy Consumption

7,5 / 10 Kw

Water Consumption

8 / 12 L al minuto

Expression of interest form
